Description

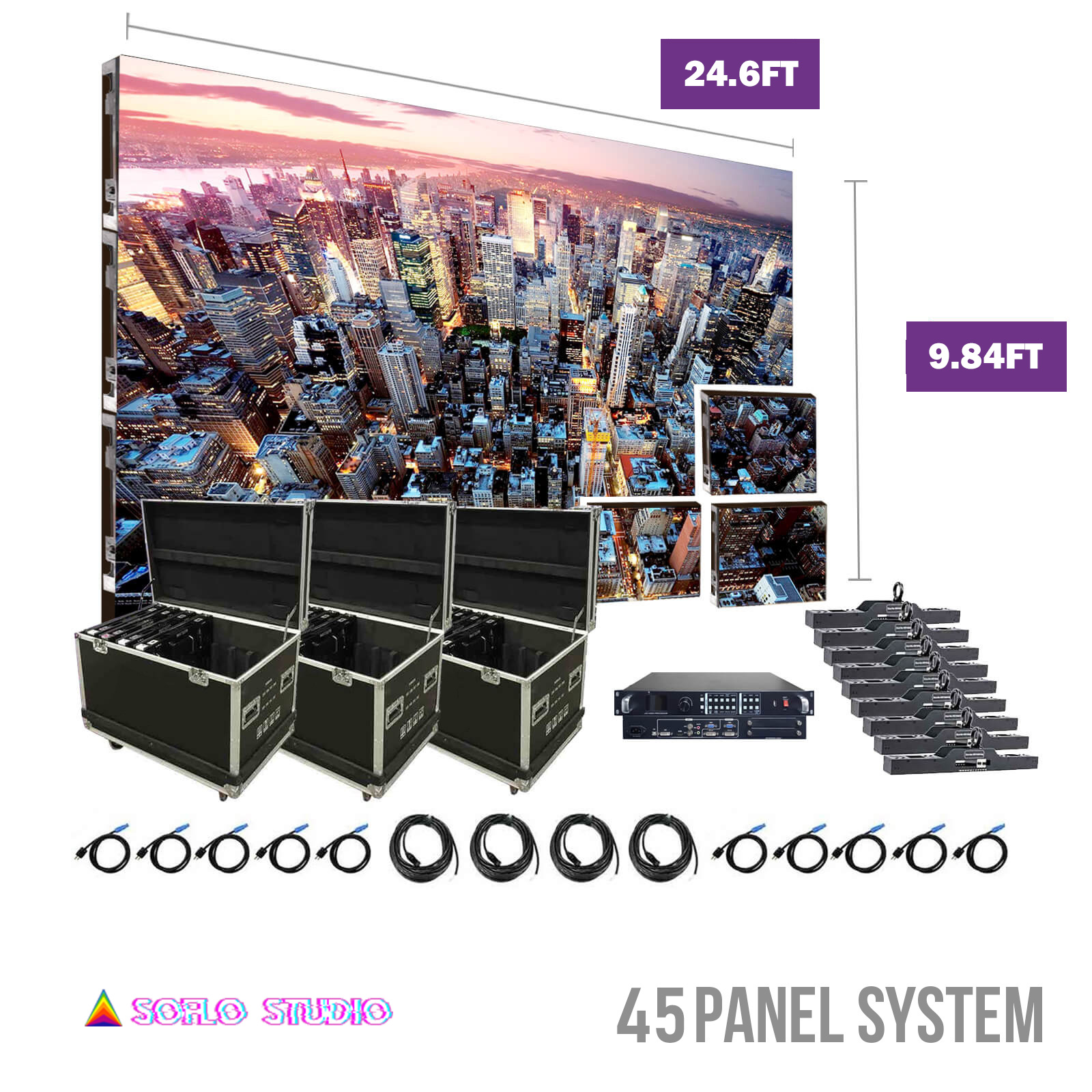

Package Includes:
• (45) Soflo P3.91mm LED Video Tiles
• (45) Data Cat 6 Link Cables
• (45) Power Link Cables
• (1) SFT-604 Video Processor for Soflo video panels
• (1) NovaStar Mctrl300 Sending Card
• (2) Hanging Bars for Rigging
• (1) Cat 6 25ft Cable
• (2) Main Power Cables
• Spare Parts Included
CONTROL SYSTEM:
• Control Mode: SFLO-604 Video Processor with HDMI, DVI, VGA, BNC inputs
• Frame Update Frequency: 50-60Hz
• Refresh Rate: 3800Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI
• Resolutions: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280, Max 2304 x 1152
• Brightness Correction: Pixel, Module, Cabinet
Specifications:
• Pixel Pitch: P3.91mm
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 128×128
• King-Light Encapsulation
• Size: 500 x 500 x 75mm / 19.7” x 19.7” x 3”
• IC2153 High Refresh Rate 3800hz
• Weight: 15.2lbs. / 7Kg
OPTICAL RATINGS:
• Brightness: 3500 NITS
• View Angle: Horizontal 140°/Vertical 140°
• Optimal View Distance: 6ft (2m)
• Brightness Adjustment: 0~100% 100 Levels
POWER SUPPLY:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 425W/per panel
• Ave. Power Consumption: 240W/per panel
• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out
